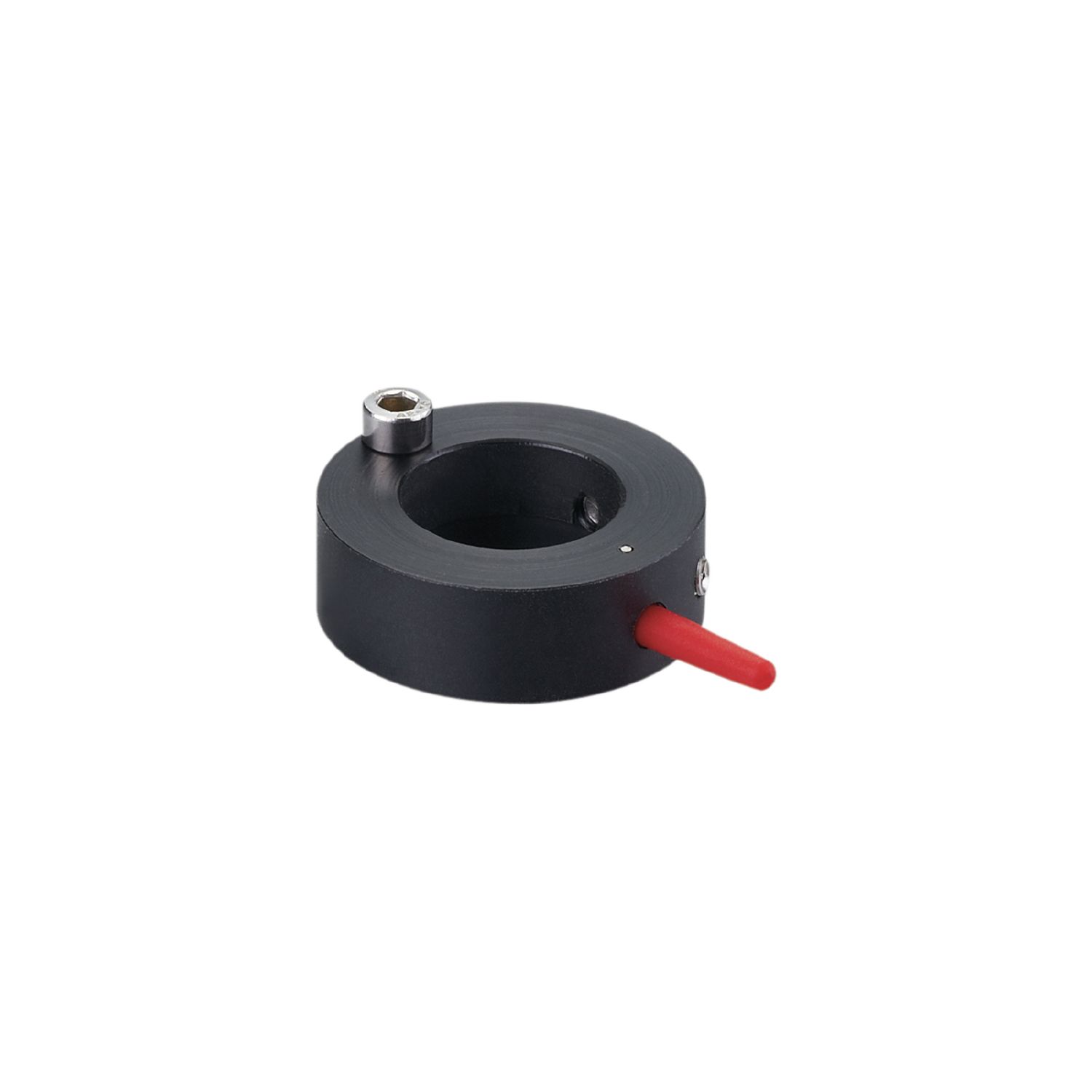

Target puck for valve actuators

E17013

PUCK D48 +90/-0 / W25

Target puck for valve actuators E17013

Target puck for valve actuators

E17013

PUCK D48 +90/-0 / W25

  • For monitoring valve positions
  • For reliable position feedback on valve actuators
  • Easy mounting directly on the shaft of the drive
  • Non-contact and self-cleaning system
  • Selectable position of the damping screws
Application
Design for butterfly valve
Mechanical data
Weight [g] 29
Target puck diameter [mm] 48
Materials target puck: PA 6; pointer: silicone RAL 3020; counter-sunk screw: stainless steel (303/1.4305); head cap screw: stainless steel (304/1.4301); set screw: $1_4301; locking pin: stainless steel (304/1.4301)
Tightening torque [Nm] 2; (screws)
Accessories
Items supplied
screws
set screws: 2 x M5 x 10, stainless steel
targets
head cap screw: 1 x M5 x 6, stainless steel
counter-sunk screw: 1 x M5 x 8, stainless steel
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17013-00 — 25.08.2015 —
