Y connection cable
E12684
YDOGS060--S0005H03DOGH030MSS
Y connection cable
E12684
YDOGS060--S0005H03DOGH030MSS
- For use in mobile machines and vehicles
- Wide operating temperature range
- DEUTSCH connector for the fast and easy connection to the on-board system
- High protection rating for the requirements of harsh industrial environments
- PUR cable with good drag chain suitability
Application
| Special feature | Free from silicone; Halogen-free; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Ambient temperature (moving) [°C] | -20...80 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] | 405.214 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Materials | PA; socket: TPU orange; Sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Number of ports splitter box | 2 | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - DEUTSCH connector C
| Connector: 1 x DEUTSCH connector, straight |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12684-00 — 06.12.2019 —
E12684 –
YDOGS060--S0005H03DOGH030MSS
Electrical connection - DEUTSCH connector C
Connector: 1 x DEUTSCH connector, straight

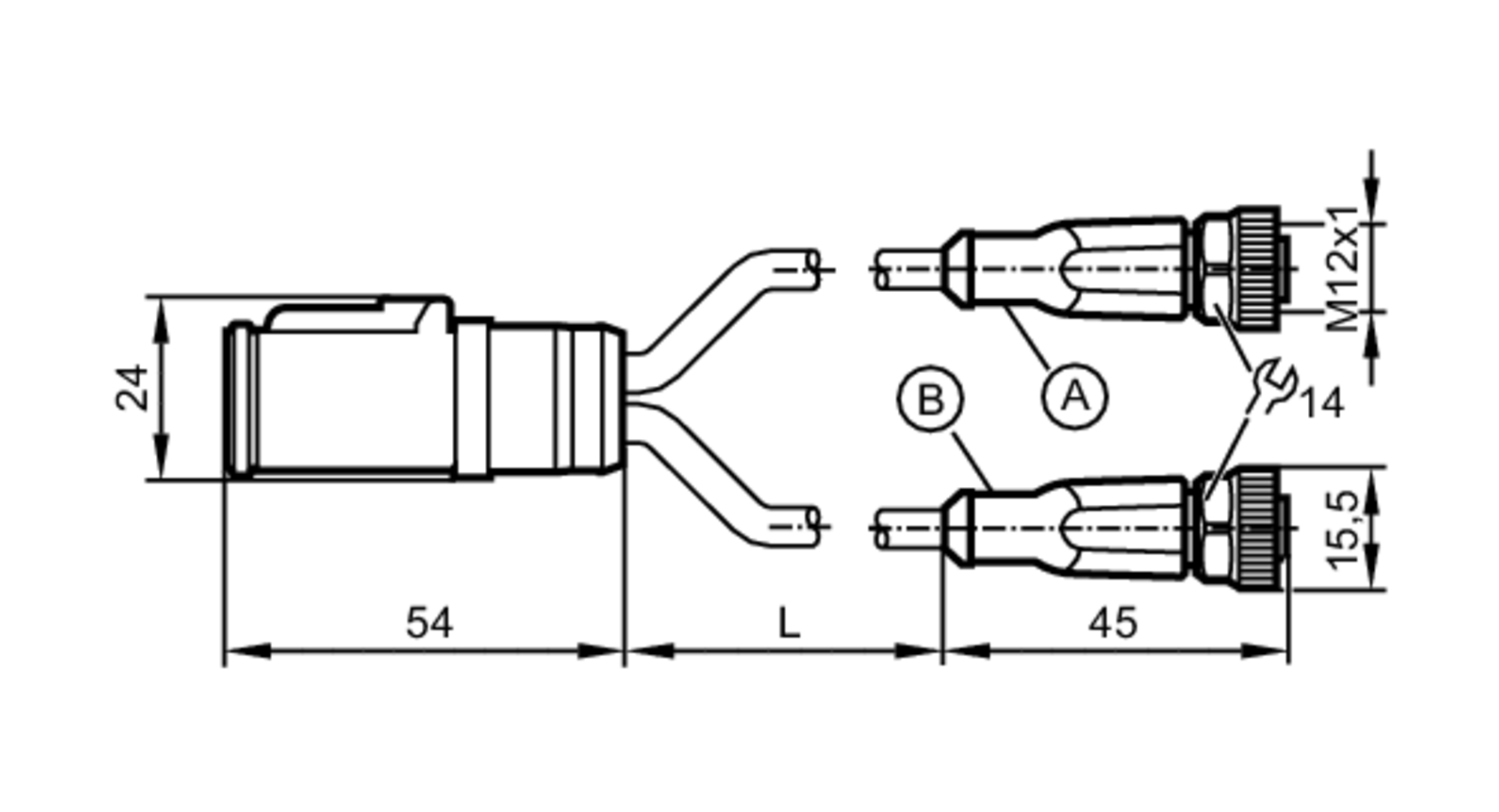

Electrical connection
Connection
Electrical connection - socket A
Cable: 5 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
Electrical connection - socket B
Cable: 5 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
