- E12641
Connecting cable with socket
E12641
ADOGX050MSS0002H05
Connecting cable with socket
E12641
ADOGX050MSS0002H05
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- High power transfer thanks to high current rating
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | power cable, L-coded |
Electrical data
| Operating voltage [V] | 63 DC |
|---|---|
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 458.9 |
|---|---|

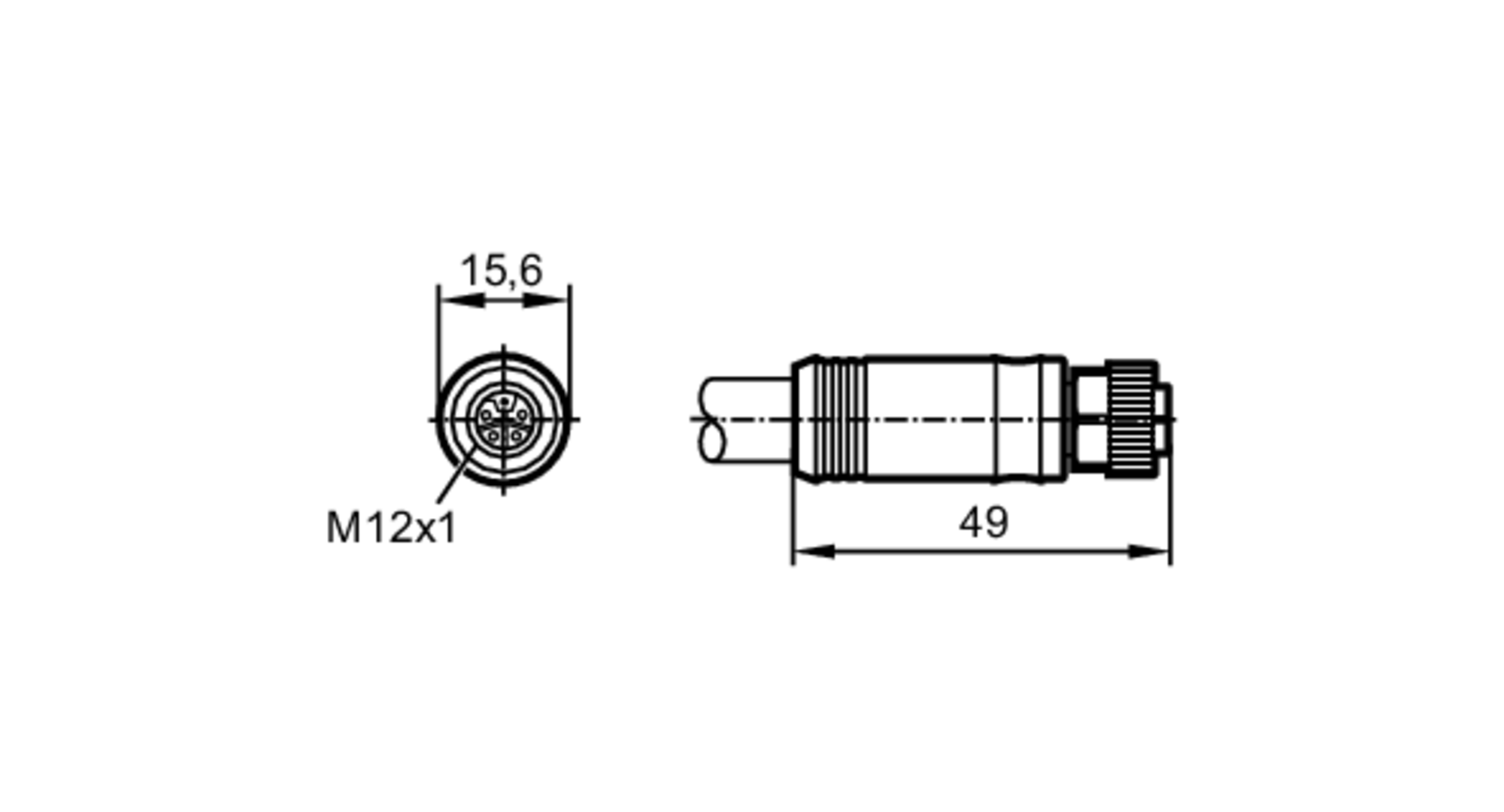

| Dimensions [mm] | 49 x 15.6 x 15.6 |
| Materials | PP |
| Moulded-body material | TPE |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12641-00 — 11.11.2019 —
E12641 –
ADOGX050MSS0002H05

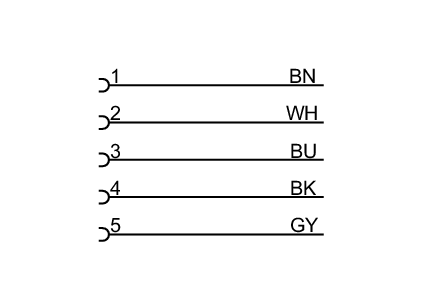

Electrical connection
Cable: 2 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm²
Electrical connection - socket
Connector: 1 x M12, straight; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated
