Angle bracket
E10736
ANGLE BRACKET M18
Angle bracket
E10736
ANGLE BRACKET M18
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Robust stainless steel design for use in harsh industrial environments
- For free-standing mounting
{{ifmVariantName}}
Application
| Design | for type M18 |
|---|
Mechanical data
| Weight [g] | 43 |
|---|---|

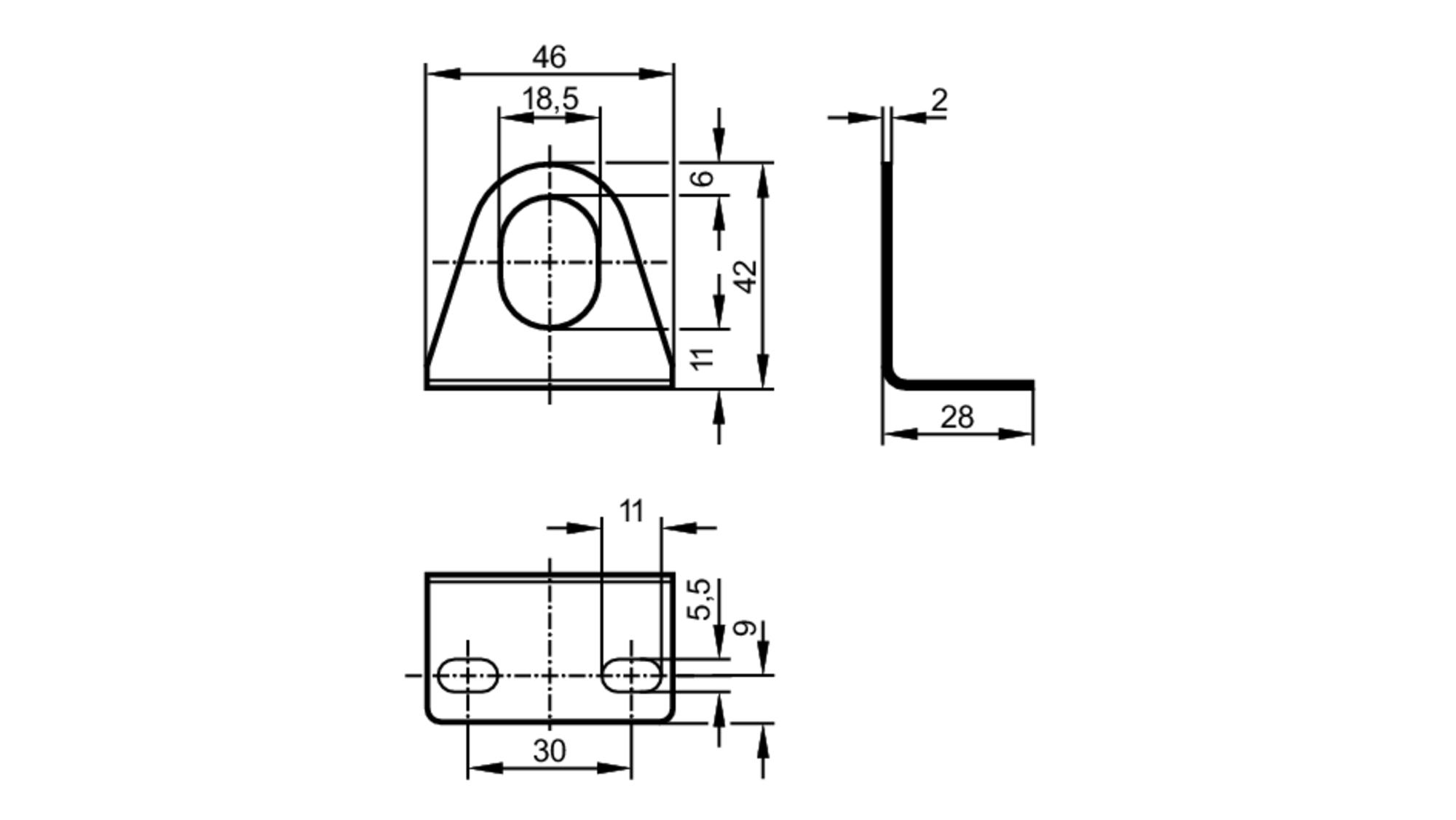

| Dimensions [mm] | 42 x 48 x 28 |
| Materials | stainless steel (1.4301 / 304) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10736-00 — 06.03.2003 —
