Angle bracket
E10734
ANGLE BRACKET M8
Angle bracket
E10734
ANGLE BRACKET M8
- For mounting cylindrical sensors
- Easy, quick and inexpensive fixing
- Robust stainless steel design for use in harsh industrial environments
- For free-standing mounting
{{ifmVariantName}}
Application
| Design | for type M8 |
|---|
Mechanical data
| Weight [g] | 14.3 |
|---|---|

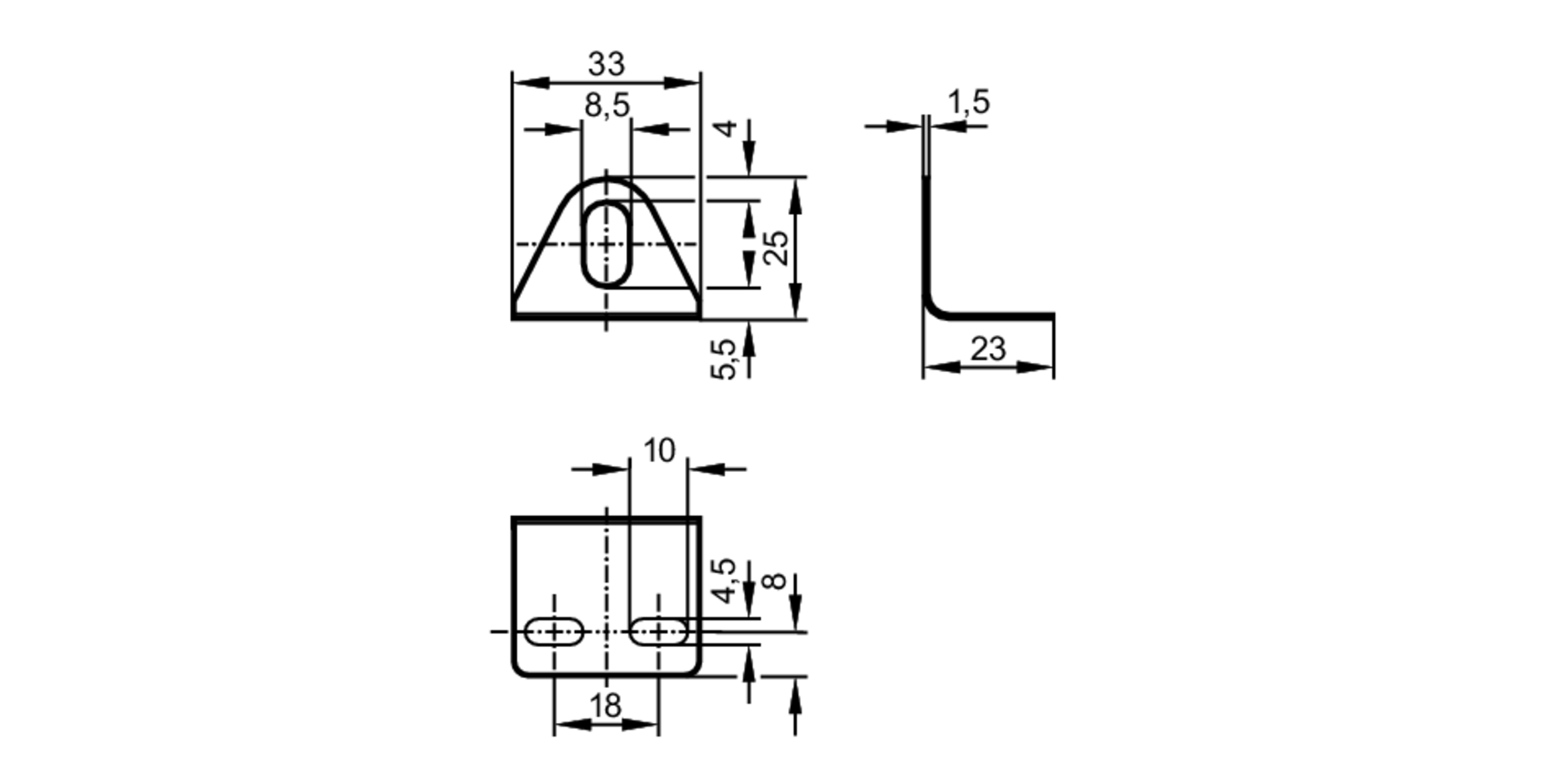

| Dimensions [mm] | 25 x 33 x 23 |
| Materials | stainless steel (1.4301 / 304) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
