IG6075

Inductive sensor

IGC2008SFRKG/3M

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • With clock input
  • Detection of wire break and short circuit
  • Output function normally open / normally closed programmable
  • Two-wire technology
  • High protection rating for the requirements of harsh industrial environments
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Electrical design PNP/NPN
Output function normally open / normally closed; (selectable)
Sensing range [mm] 8
Housing threaded type
Dimensions [mm] M18 x 1 / L = 54
Electrical data
Operating voltage [V] 10...36 DC; ("supply class 2" to cULus)
Current consumption [mA] 15; (24 V)
Protection class II
Reverse polarity protection yes
Inputs
Clock input fmax = 1000 Hz; tv< 0.5 ms; Imax < 0.8 mA (36 V)
Outputs
Electrical design PNP/NPN
Output function normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 125
Switching frequency DC [Hz] 300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 8
Real sensing range Sr [mm] 8 ± 10 %
Operating distance [mm] 0...6.48
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 1...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1847
UL approval
Ta -25...80 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 168.6
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 54
Thread designation M18 x 1
Materials PBT; TPE
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Remarks
minimum cable bending radius
fixed installation: 5 x external diameter
flexing installation: 15 x external diameter
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 3 m, PVC; 3 x 0.5 mm²
Diagrams and graphs

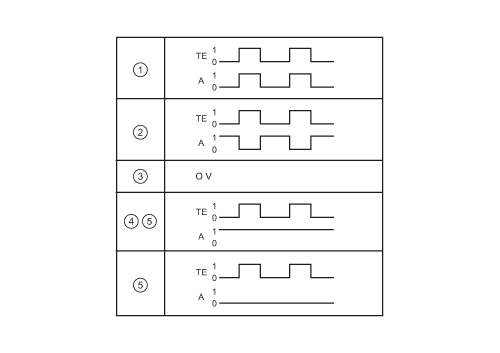

Clock input
1: sensor undamped
2: sensor damped
3: wire break
4: short circuit
5: faulty output stage
A: Output
TE: Clock input
