| Application |
| Special feature |
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
| Free from silicone |
yes |
| Electrical data |
| Operating voltage [V] |
< 24 DC |
| Protection class |
III |
| Max. current load total [A] |
4 |
| Operating conditions |
| Ambient temperature [°C] |
-25...90 |
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| Mechanical data |
| Weight [g] |
172.8 |
| Materials |
Connecting cable with plug: TPU orange; Connecting cable with socket: TPU orange; Sealing: Viton |
| Material nut |
brass, nickel-plated / brass, nickel-plated / brass, nickel-plated |
| Connector type |
M12 |
| Drag chain suitability |
yes |
| Drag chain suitability |
| bending radius for flexible use |
min. 10 x cable diameter |
| travel speed |
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles |
> 5 Mio. |
| torsional strain |
± 180 °/m |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
|
Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 2 x 0.34 mm² (42 x Ø 0.1 mm ) + 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Electrical connection - plug C |
|
Connector: M12; Moulded body: TPU, Halogen-free, orange; Locking: Lock nut, brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
| Electrical connection - socket A |
|
Connector: M12; Moulded body: TPU, Halogen-free, orange; Locking: Lock nut, brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
| Electrical connection - plug B |
|
Connector: M12; Moulded body: TPU, Halogen-free, orange; Locking: Lock nut, brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
| Diagrams and graphs |
|
|
|

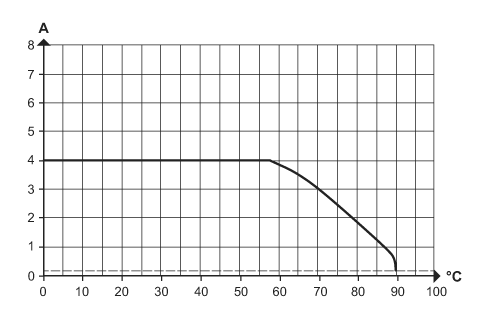

Derating Imax * 0.8 DIN EN 60512-5-2 |
|
X
|
Ambient temperature [°C] |
|
Y
|
Current [A] |
|
