  6. OGH313

Diffuse reflection sensor with background suppression

OGH-FPKG/6M

OGH313

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team


List Price without Tax in ARS

  • Robust stainless steel housing for use in the food and beverage industry
  • Resistant to high-pressure cleaning with aggressive cleaning agents
  • High protection rating for the requirements of harsh industrial environments
  • Intuitive setting of sensitivity and output function
  • Precise background suppression
  • ce
  • eac
  • cul
Download
Technische Details
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 150; (200 (...60 °C))
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 15...300; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm] 15...300
Range on grey object (18 % remission) [mm] 15...290
Range on black object (6 % remission) [mm] 15...190
Factory setting
$Hellschaltung
Range adjustable yes
Max. light spot diameter [mm] 25
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 362
Mechanical data
Weight [g] 262
Housing threaded type
Dimensions [mm] M18 x 1 / L = 80.4
Thread designation M18 x 1
Materials stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 6 m, PVC; 3 x 0.34 mm²
Diagrams and graphs

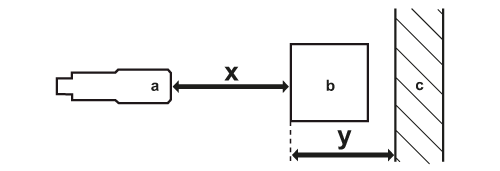

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]
accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGH313-00 — 08.03.2010 —
