  6. OG0029

Through-beam sensor receiver

OGE-HBOA

OG0029

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team


List Price without Tax in ARS

  • Very long range
  • Intuitive setting of the sensitivity via pushbutton
  • LED display to check switching status and function
  • With combined AC/DC output stage
  • Robust housing for use in harsh industrial environments
  • ce
  • ccc
  • eac
Download
Technische Details
Application
Function principle Through-beam sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC/DC
Protection class II
Reverse polarity protection no
Type of light infrared light
Wave length [nm] 880
Outputs
Output function light-on mode
Max. voltage drop switching output DC [V] 8
Max. voltage drop switching output AC [V] 8
Minimum load current [mA] 5
Max. leakage current [mA] 1.7
Permanent current rating of switching output AC [mA] 90; (180 (...40 °C))
Permanent current rating of switching output DC [mA] 90; (180 (...40 °C))
Short-time current rating of switching output [mA] 600; (20 ms / 0,5 Hz)
Switching frequency AC [Hz] 25
Switching frequency DC [Hz] 25
Short-circuit proof no
Overload protection no
Detection zone
Transmitter / receiver receiver
Range [m] < 15
Range adjustable yes
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 334
Mechanical data
Weight [g] 121.7
Housing threaded type
Dimensions [mm] M18 x 1 / L = 78.5
Thread designation M18 x 1
Materials PBT
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, red
function 1 x LED, red flashing light
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC; 2 x 0.5 mm²
Diagrams and graphs

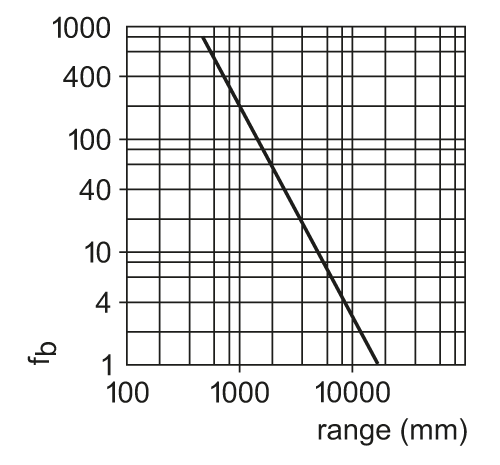

excess gain graph
