Retro-reflective sensor
OGP100
OGP-DPKG/US
Retro-reflective sensor
OGP100
OGP-DPKG/US
- Very long range
- For use in conveying and materials handling
- Ready for operation immediately thanks to fixed setting
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
{{ifmVariantName}}
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 645 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector [m] | 0.05...2.5; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter [mm] | 200 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67; (in conjunction with a corresponding connector) |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1173 |
Mechanical data
| Weight [g] | 15 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 44 | |
| Thread designation | M18 x 1 | |
| Materials | housing: ABS | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
|

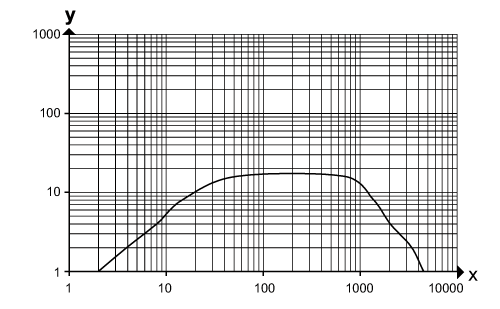

excess gain graph
|
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGP100-00 — 13.04.2023 —
OGP100 –
OGP-DPKG/US
Electrical connection
Connector: 1 x M12; coding: A
