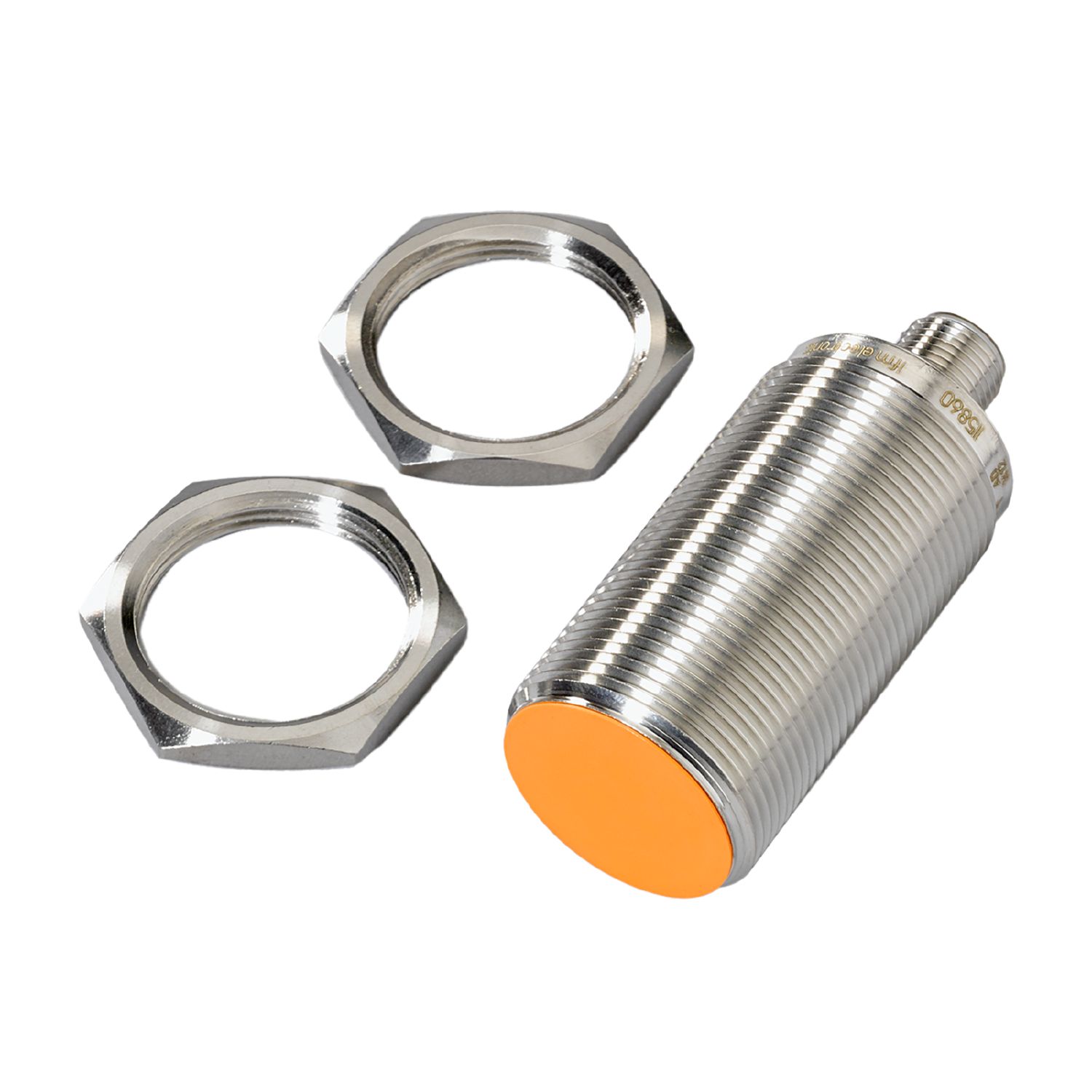

- II5916
Product characteristics
| Housing | threaded type |
|---|---|
| Dimensions [mm] | M30 x 1.5 / L = 70 |
Electrical data
| Operating voltage [V] | 15...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Analogue current output [mA] | 4...20; (linear; gradient: 1,778 mA/mm; for frontal approach and for target made of mild steel: 30 x 30 x 1 mm) |
|---|---|
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Measuring range [mm] | 1...10 |
|---|
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Linearity error of analogue output [%] | ± 3 %; (of IA max) |
| Repeatability analogue output [%] | ± 2 %; (of IA max) |
Response times
| Response time [ms] | < 10 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| MTTF [years] | 218 |
|---|
Mechanical data
| Weight [g] | 134.66 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 70 |
| Thread designation | M30 x 1.5 |
| Materials | housing: brass white bronze coated; sensing face: PBT |
| Tightening torque [Nm] | 50 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
|---|
