- E30425
Application
| Design | for sensors PM1xxx |
|---|
Electrical data
| Operating voltage [V] | 20...30 DC |
|---|
Outputs
| Max. load [Ω] | (Ub - 14 V) / 21.5 mA |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| MTTF [years] | 2927 |
|---|
Mechanical data
| Weight [g] | 227 |
|---|---|
| Materials | stainless steel (316L/1.4404); PA; FFKM; PBT |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |

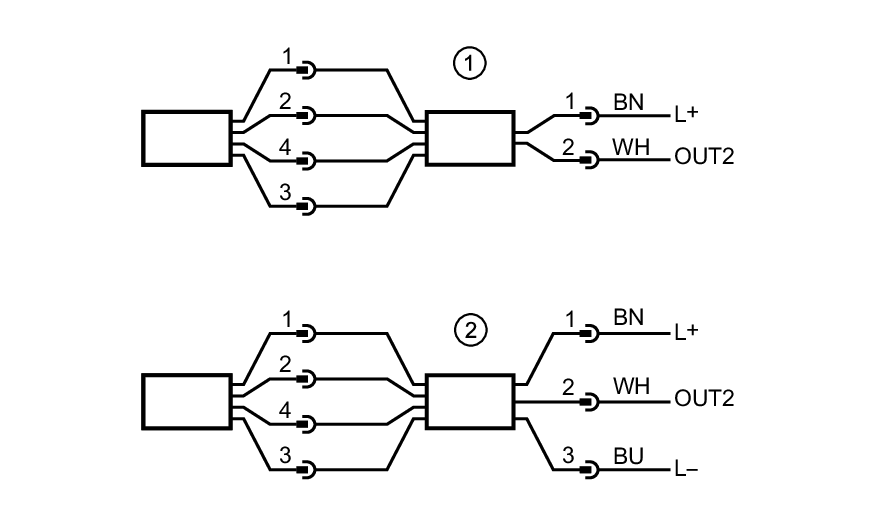

Electrical connection
| Connection | Cable: 0.9 m, PUR; Maximum cable length: 30 m; between sensor and teach button |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30425-00 — 05.11.2020 —
