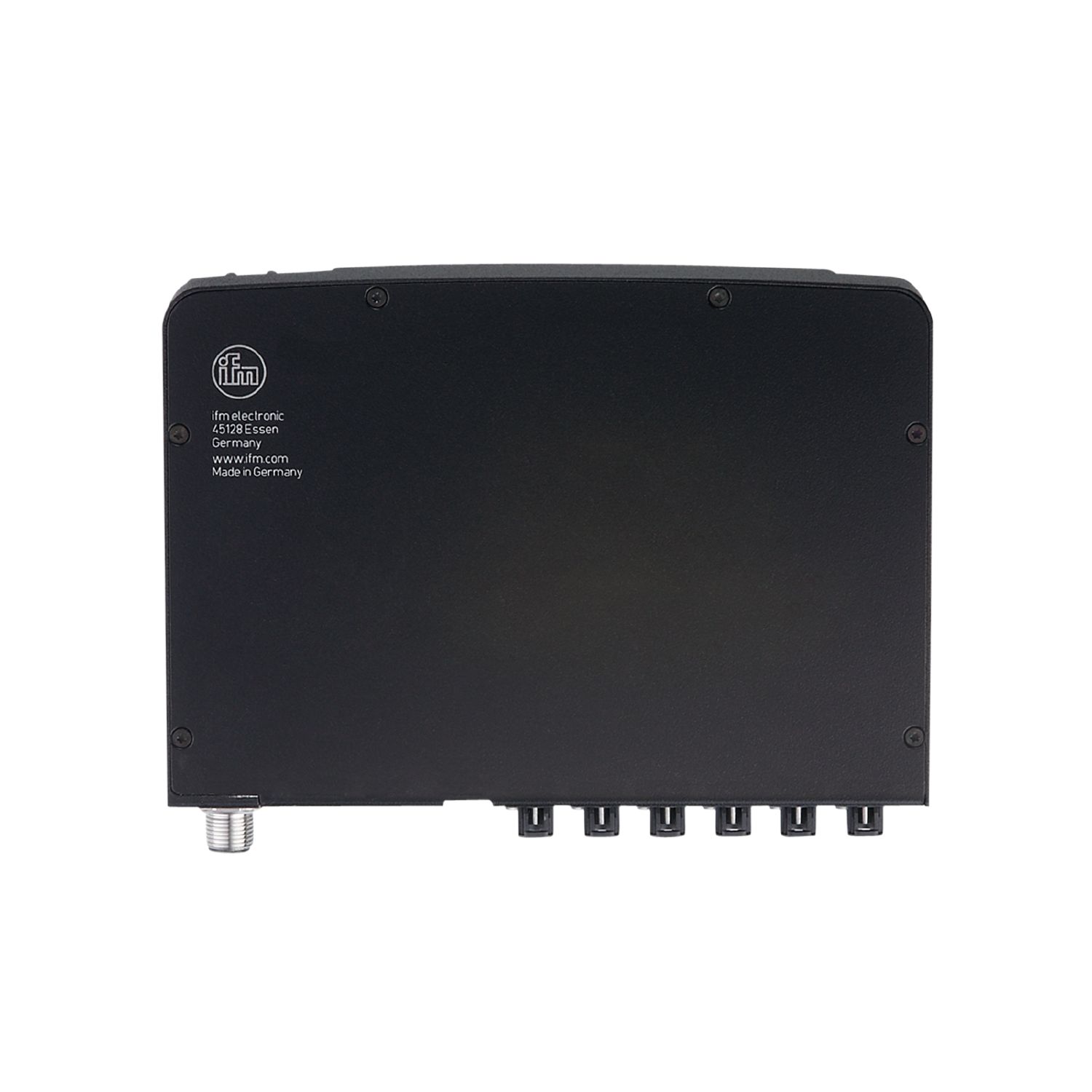

Video processing unit (VPU)
OVP800
OVPAA/RO/E0/E1/NJ TX2/4GB
Video processing unit (VPU)
OVP800
OVPAA/RO/E0/E1/NJ TX2/4GB
Article no longer available - archive entry
Alternative articles: OVP810 Product comparison: OVP800 / OVP810 When selecting an alternative article and accessories please note that technical data may differ!
The OVP8xx's capacity for camera connections depends on pairing cameras of the same type to adjacent ports. Port pairing example as follows:
•[port 0, port 1] ex: [2D-cam1, 2D-cam2]
•[port 2, port 3] ex: [3D-cam1, 3D-cam2]
•[port 4, port 5] ex: [3D-cam3, 3D-cam4]
Additional documentation is available on the developer's portal: ifm3d.com
Application
| Application | Vision sensors |
|---|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Max. current consumption [mA] | 2710; (310 + (n x 800) n = number of cameras) |
| Power consumption [W] | 33.2; (7,4 + n x ((FPS x 0,32) + 2,2); n = number of cameras; FPS = camera frame rate) |
Interfaces
| Number of CAN interfaces | 1 |
|---|---|
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
| Protocol | free protocol |
|---|
| Transmission standard | 1GBase-T | ||||
|---|---|---|---|---|---|
| Transmission rate | 1000 MBit/s | ||||
| Protocol | TCP/IP | ||||
| Factory settings |
|
| Transmission standard | FPD-Link | |
|---|---|---|
| Type of connector | HFM (Mini-FAKRA) | |
| Note on interfaces |
|
| Type of connector | Mini-USB; type A |
|---|---|
| Version | 2.0; 3.0 |
Operating conditions
| Ambient temperature [°C] | -10...40 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 50 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| Electrical safety |
|
Mechanical data
| Weight [g] | 978.131 |
|---|---|
| Dimensions [mm] | 126.5 x 29 x 180.4 |
| Material | housing: aluminum |
| Tightening torque [Nm] | < 5.5 |
Hardware
| Processor | CPU: Dual-Core NVIDIA Denver 2 64 Bit ; ARM Cortex A57; GPU: NVIDIA Pascal 256 CUDA Cores (1,3 TFLOPs) SOM: Nvidia Jetson TX2 4GB Module |
|---|---|
| Working memory | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s |
| Mass storage | 16GB eMMC 5.1 Flash |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - USB socket
| Connector: 1 x mini USB interface |
Electrical connection - USB socket Typ A
| Connector: 1 x Typ A |
Electrical connection - sensor interface
| Connector: 6 x HFM (Mini-FAKRA) (AMK12A-1M4Z5-A) |
Electrical connection - voltage supply / CAN
| Connector: 1 x M12; coding: A |
Other data
Connection
| Port 0 | Port 1 | Port 2 | Port 3 | Port 4 | Port 5 | |
| example 1 | camera 1 (3D) | camera 2 (3D) | camera 1 (2D) | camera 2 (2D) | camera 3 (3D) | camera 4 (3D) |
| example 2 | camera 1 (2D) | camera 2 (2D) | camera 1 (3D) | camera 2 (3D) | camera 3 (2D) | camera 4 (2D) |
| example 3 | camera 1 (3D) | camera 2 (3D) | camera 3 (3D) | camera 4 (3D) | camera 5 (3D) | camera 6 (3D) |
| ports 0 and 1, 2 and 3, 4 and 5 must be assigned to the same type of image sensor. | |
| please note the different 3D image sensor types 38k and VGA when connecting the cameras. |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OVP800-00 — 15.03.2023 —

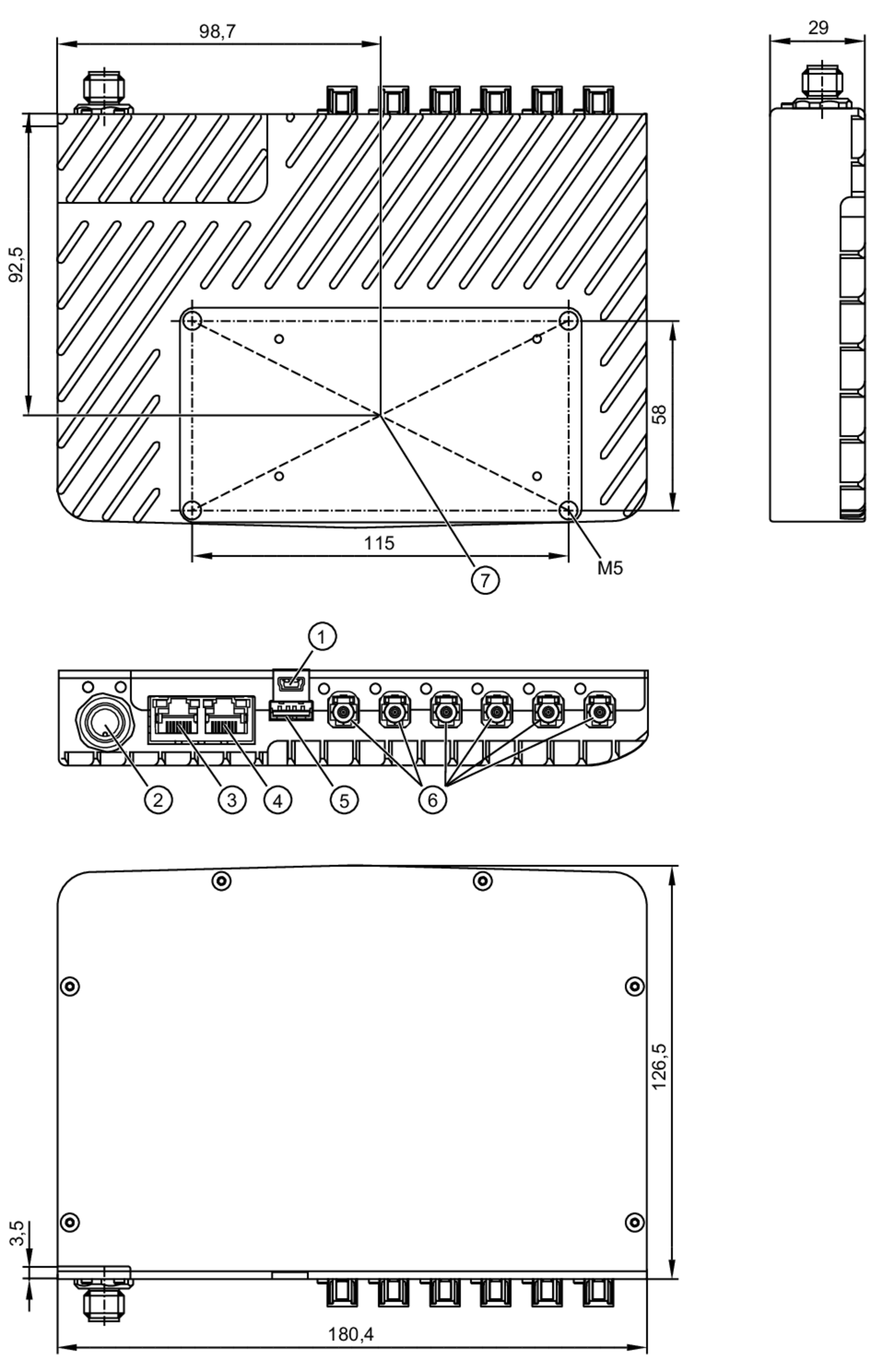

OVP800 –
OVPAA/RO/E0/E1/NJ TX2/4GB
- 1
- voltage supply / CAN interface
- 2
- Ethernet 2 x RJ45
- 3
- mini USB interface 2.0
- 4
- USB interface 3.0
- 5
- Connection cameras x 6 HFM
Electrical connection - USB socket
Connector: 1 x mini USB interface
Electrical connection - USB socket Typ A
Connector: 1 x Typ A
Electrical connection - sensor interface
Electrical connection - voltage supply / CAN
- 1
- screen
- 2
- 24 V
- 3
- GND
- 4
- CAN +
- 5
- CAN -
Connector: 1 x M12; coding: A
