Pressure rating [bar] | 25 |
---|
Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
---|---|
Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Weight [g] | 475.5 |
---|---|
Materials | stainless steel (316L/1.4404) |
Sensor connection | Aseptoflex |

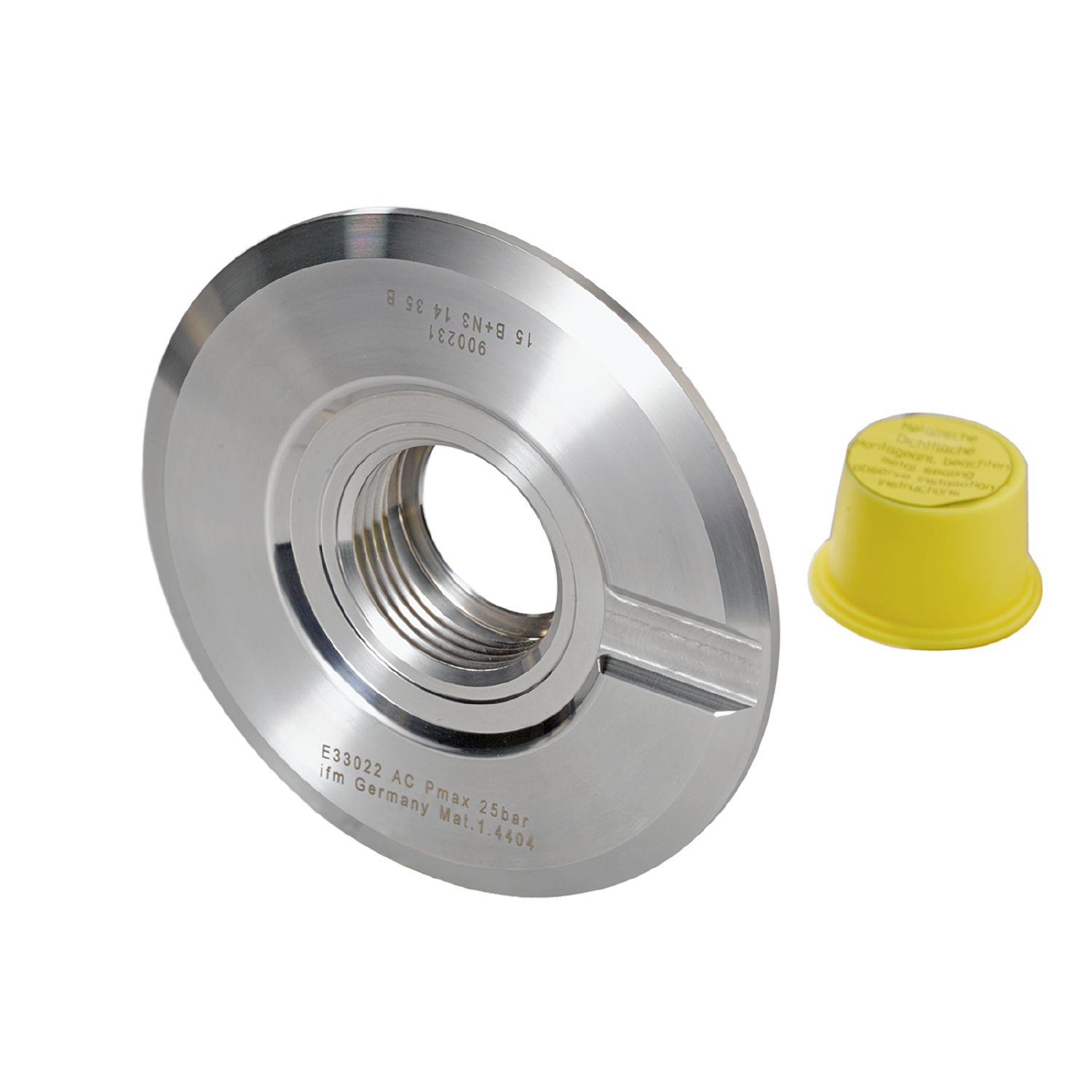

Process connection | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm |
Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
Hygienic equipment class to DIN 11866 | H4 |
Pack quantity | 1 pcs. |
---|
